Algae, bacteria, and the genetics in between

This project is an M.Sc research project that was part of my masters’ thesis, I was under the supervision of Dr. Einat Segev and have also been mentored by PhD student Yemima Duchin Rapp, in the Plant & Environmental Sciences department of the Weizmann Institute of Science.

Parts of my work were featured in a very recent paper which was submitted not long ago. Therefore I’ll only give very brief and partial introduction before diving into the data analysis driven portion of the project, therefore I’m not going to meticulously state every single reference, only a few major ones. Please read the paper if you want to read about the study in depth!

Not a biologist? No worries! You can skip the biology and go through a much simpler explanation of what’s going on or you can go straight into my data analysis project!.

Biological Introduction

Horizontal gene transfer (HGT), vital in bacterial evolution, involves the transfer of genetic material between unrelated bacteria.¹ Despite small genomes, bacteria display remarkable genetic variations, enabling adaptability and flexibility. HGT, through mechanisms like Transformation, Transduction, Gene Transfer Agents, and Conjugation, empowers bacteria to acquire new capabilities for symbiosis, antibiotic resistance, metabolic activity, and pathogenicity.²

A central mechanism for HGT is the type IV secretion system (T4SS), facilitating cell-to-cell contact and genetic material transfer. Many bacteria possess T4SS on plasmids or chromosomes, impacting their functionality. In the environmentally crucial Roseobacter group, T4SS genes vary in genomic locations, raising questions about their functional impact.³

Conjugation, a form of HGT, is suggested to contribute significantly to the ecological success of Roseobacters, known for diverse metabolic capabilities and symbiotic interactions, especially with algal hosts. Algal exudates, influencing bacterial physiology, may act as signals promoting bacterial HGT.⁴

Many Roseobacters interact with algal hosts, benefiting from algae’s nutrient-rich exudates in the nutrient-poor ocean. This proximity supports nutrient flux for planktonic bacteria. Algal exudates impact bacterial physiology and interactions, promoting horizontal gene transfer (HGT) through bacterial proximity and attachment. Our study explores Roseobacter conjugation in the ecological context of the algal host Emiliania huxleyi. We utilized Roseobacter species identified in algal samples, testing their ability to conduct conjugation and examining the influence of T4SS genomic location. Additionally, we investigated the impact of algal exudates on bacterial conjugation, focusing on T4SS-encoding gene expression and DNA transfer.⁵

This study explored Roseobacter conjugation in the context of an algal host, using Emiliania huxleyi. While a chromosome-encoded T4SS did not lead to successful conjugation, a plasmid-encoded T4SS functioned. Surprisingly, expression of plasmid-encoded T4SS genes did not increase in response to algal exudates, yet conjugation efficiency and plasmid transfer improved. This suggests a connection between bacterial response to an algal host and an increased likelihood of successful conjugation. The difference in functionality of a plasmid-encoded, or a chromosomally encoded T4SS sparked my interest and led to the project I’m going to show you now!

Introduction for non-biologists

You can skip ahead if you’ve read the previous introduction segment.

Imagine bacteria as tiny living beings with small instruction manuals inside them, guiding how they grow and function, that’s their DNA. Sometimes, these bacteria share parts of their instruction manuals with each other. This sharing, called Horizontal Gene Transfer (HGT), helps them adapt to different challenges.

Now, one way bacteria share information is through something called the type IV secretion system (T4SS). It’s like a tiny delivery system that allows bacteria to pass on their instruction manuals to other bacteria nearby. Some bacteria have this system on small circular structures called plasmids, while others have it in their main instruction manual (chromosome).

In a specific group of bacteria called Roseobacters, we found that the T4SS genes are in different places in their instruction manuals. One interesting thing about Roseobacters is their interactions with algae, like tiny plant-like organisms in the ocean. These bacteria benefit from the nutrients that algae release, helping them grow. The study looked at how these bacteria interact with algae, focusing on the T4SS.

We tested different Roseobacter species to see how they share information, and found that the T4SS on plasmids works well, while the one on the chromosome (main instruction manual) doesn’t work as effectively.

Surprisingly, the bacteria’s response to algae didn’t make the T4SS on plasmids work better, but the bacteria still shared information more efficiently. This suggests that the way bacteria react to algae somehow helps them share their instruction manuals better.

So, this study explored how bacteria, specifically Roseobacters, share information in the context of their interaction with algae. The differences in how the plasmid and main instruction manual versions of T4SS work caught the our attention and inspired the project I’m showing next.

Defining a research question and approach

Seeing as there’s a functional difference between these systems depending on their encoding location, we defined our research question as “What is the difference between chromosomally or plasmid encoded T4SS and can it explain conjugation ability”’

We began approaching this question experimentally and planned designs of several mutant strains, however, technical difficulties and time limits of my studies made us recalculate and I’ve decided to move on with a bioinformatic approach, focusing on data analysis in order to address the question on a larger scale by collecting data from numerous bacterial strains. The first step would be to create a dataset.

Data Retreival and Handeling

Data Retreival

The first step was to gather all relevant data. We started by mapping out all the relevant genes associated with our system on KEGG. Next, we produced function profiles listing the number of copies of each gene per bacterial scaffold using JGI’s IMG/MER database and matching with the unique IDs we previously gathered. Additionally, we downloaded all protein sequences files. Retrieval of protein sequences had to be automated using the Selenium library in Python due to the large quantity of sequences (over 6,000). The script interacts with JGI’s IMG/MER interfaces for genomic data.

In total, we gathered several thousands of lines of data, and several thousands of protein sequences to analyze.

Data Cleaning and Transformation

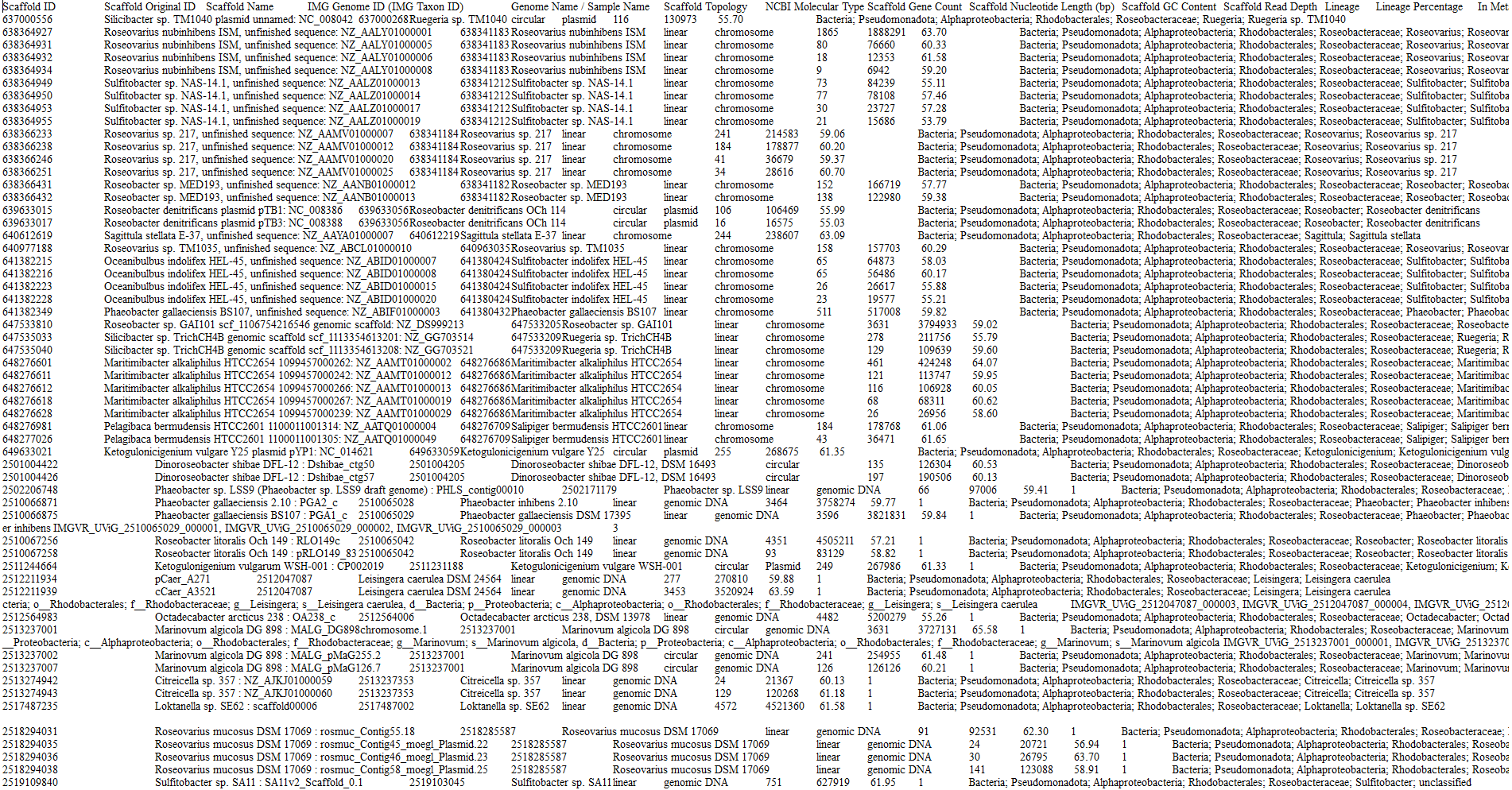

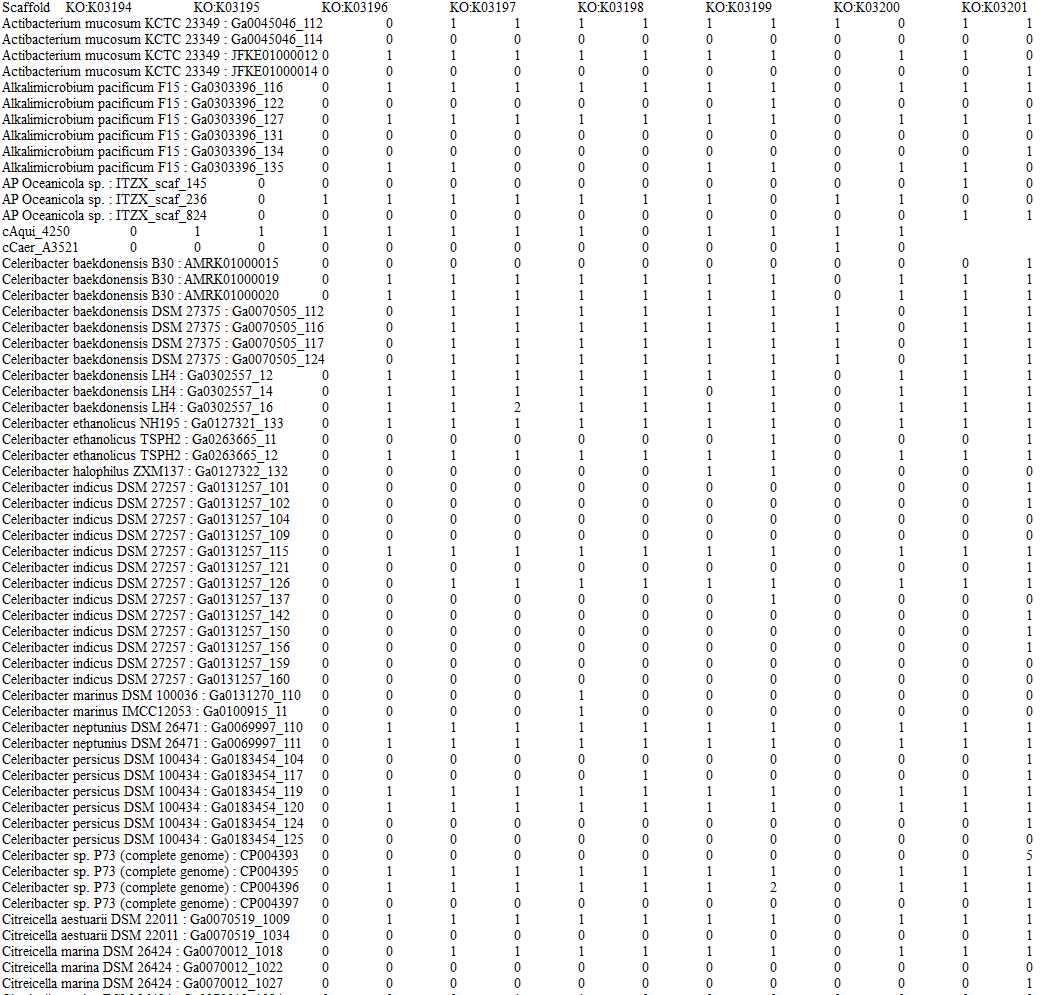

Tables containing function profiles had to be merged with metadata tables using R and the dplyr package in R. Cleaning the data included renaming mislabeled columns, treating missing data with NA and overall reorganization of the dataset.

Protein sequences files also required attention throughout the pipeline, mainly requiring text manipulation on file names. This was done using linux and python.

Tools and methods used for analysis

Beyond analyses done using R, designated tools for sequence analyses were used in this work. Web-based apps like InterProScan, for classification of protein families. BLAST, a sequence alignment tool. And other offline, linux based applications as MAFFT sequence alignment program and PHYLIP program suite, for phylogenetic analyses.

Results

Target genes’ distribution in Roseobacters reveals missing pieces

Even before we deal with our question directly, exploring the data and getting to know it revealed lots of interesting observations and generated more questions.

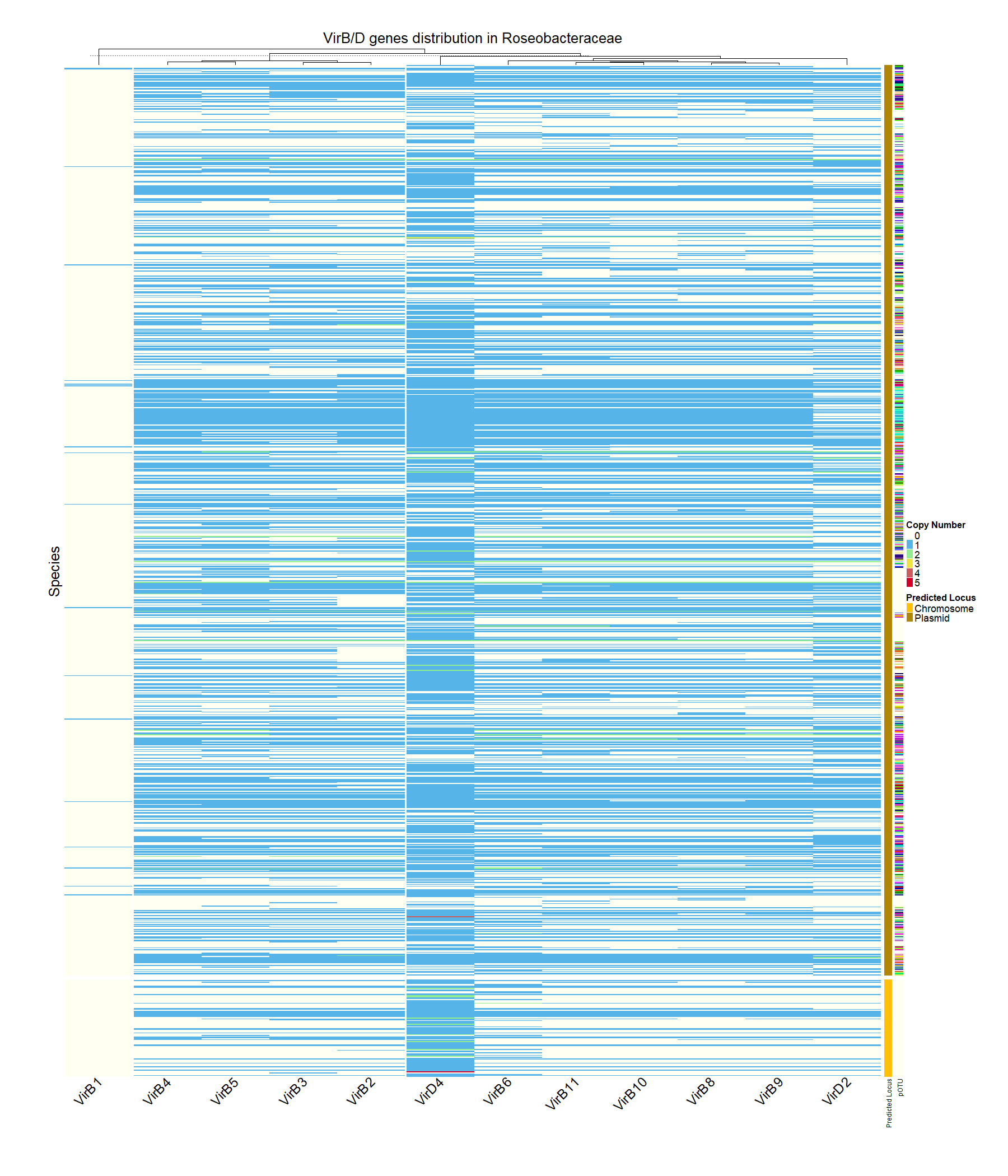

Due to the large amount of data, and since we’re now looking into the distribution of genes I thought the best way to visualize it would be to show the gene distribution on a heatmap.

The heatmap shows so much! You can tell there’s lots of variance in the gene distribution, clearly most systems are encoded on plasmids. Also there seem to be a variety of unique plasmids, but we’ll touch more on that later.

The first noticeable anomaly is the absence of VirB1 genes. What’s not shown here is how VirB7 is missing completely, and therfore is not plotted. The literature isn’t conclusive on these genes’ importance for conjugation. Some suggest they’re essential, while others argue they’re dispensable. However the functions they’re said to perform may be critical for conjugation. Given these extreme findings, I questioned the validity of the data. To perform a sanity check, I conducted a thorough analysis of the genes comprising the system in our model strains.

Thorough gene context analysis reveals challenges in study of T4SS genes

JGI’s platform proved useful for comparing gene context between the T4SS of two model strains we used for this research: Phaeobacter inhibens strains P72 and DSM-17395. Two copies of the system are encoded on two different plasmids of strain P72 (A & B in the figure below), while only one copy exists on the chromosome of DSM-17395 (C in the figure below).

The first thing I noticed when I looked at the gene layout of P72 was there were so many hypothetical proteins! is one of them our missing VirB1 or VirB7?

To those of you that are not biologists, a hypothetical protein means these are proteins that are predicted to be expressed in an organism, but so far there’s no evidence of their existence. Meaning that the gene exists, but it’s not clear if it is being transcribed and translated into a functioning protein.

It’s no big surprise as you can see below, but after some analyses we found that some of these proteins resembled VirB1! A specific domain affiliated with VirB1 was found and allowed us to classify it as VirB1-like protein. Even though the databases link this domain and hypothetical protein, they don’t link it to the original VirB1 protein. In analyses on the other hypothetical proteins we couldn’t find any resemblence to other proteins. However we can say that the hypothetical proteins (#1,2,3,4) we’re talking about differ from each other but are highly similar between the strains.

This highlighted the challenge in studying this system, where some proteins lack distinct patterns or domains that would allow us to identify them. We decided to neglect these proteins’ influence, excluding them from other analysis, in order to move forward and see what else the data shows .

A missing protein may explain in-ability to perform conjugation in chromosomal T4SS

But hey, that’s not all, there’s a noticeable difference between the gene layout of the plasmid-encoded T4SS (A & B in the previous picture) and the chromosomally encoded T4SS (C in the previous picture), And that is the absence of hypothetical protein #4.

While we couldn’t associate it with any function computationaly, it is currently the first candidate to blame for a functional difference between the systems. The next logical step is to experimentally test this hypothesis using genetic editing tools. Unfortunately, experimental work was no longer possible at that stage of my studies .

Relatively few Roseobacters contain “intact” systems

Genes in some genetic systems, like the T4SS we’re studying, are grouped togheter in the DNA. Therefore we assume that the entire group has to be intact, complete and all of the genes of the system must be present in the DNA for the system to be ‘enabled’. Any missing protein could effect the functionality of the system, think about it like a machine with missing cogs!

After filtering the data to count how many bacteria contain a complete system we found that only 329 out of 1172 strains have at least one system encoded in their DNA! (that’s just 28%! )

Can the system function with missing proteins? Are there alternative proteins filling in for the missing ones? Are there entirely alternative systems in use? So many questions!

Unique plasmid Operational Taxonomic Units

Researchers at the JGI came up with a tool to identify mobile genetic elements⁶. The idea is that plasmids that are have very close evolutionary relations, can be clustered and be named with the same “plasmid Operational Taxonomic Unit” (pOTU). We can use this type of analysis to determine plasmids of unique ancestry.

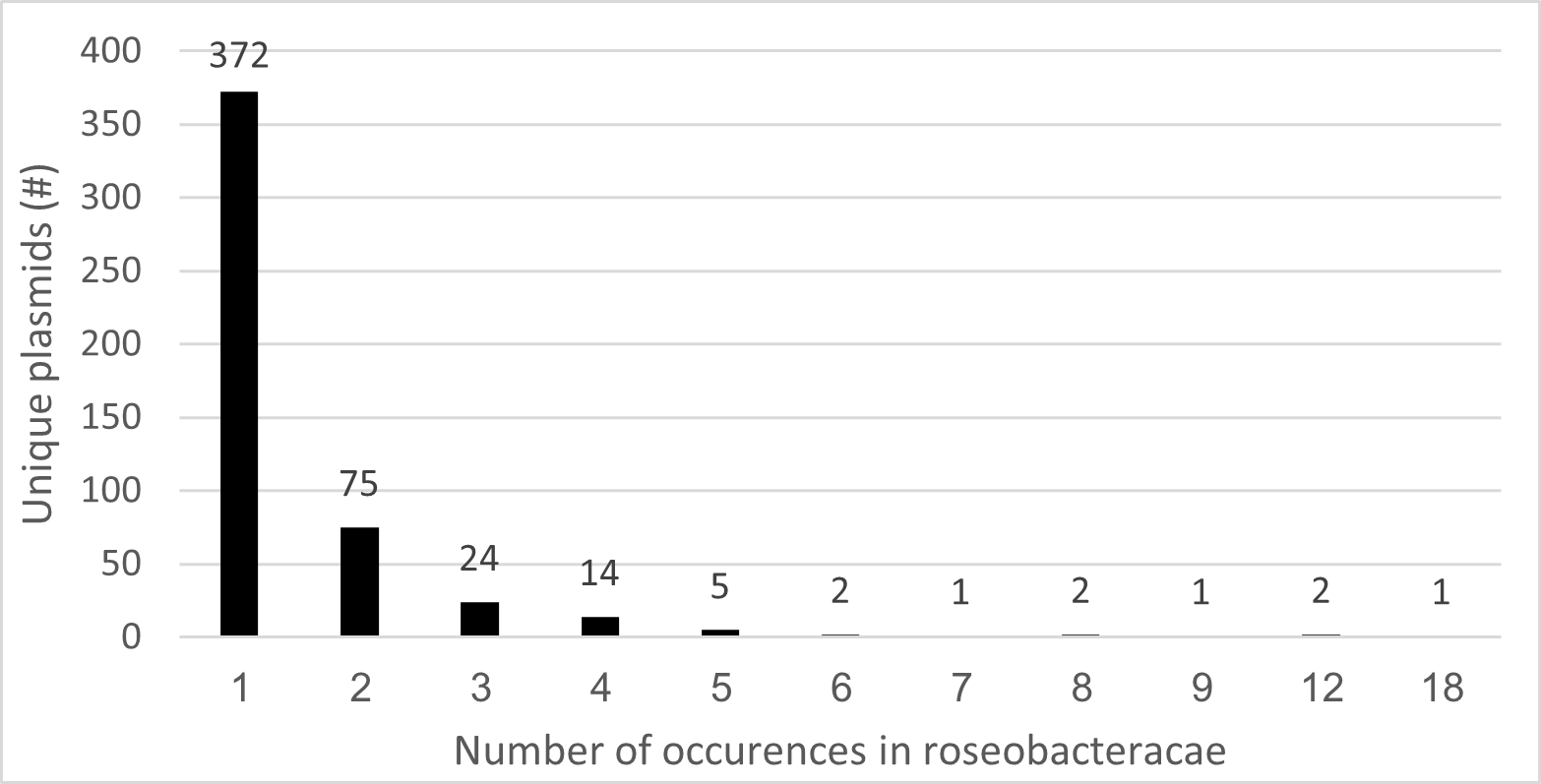

From this data we can see that distribution of unique pOTUs in Roseobacters varies significantly. The majority (372) of plasmids are unique to a single strain, indicating diverse plasmid arrays. Meaning that each of these 372 plasmids are completely unique! Conversely, up to 18 genomes share a single pOTU, in other words, there are groups of bacteria, with the largest group having 18 bacteria, that have the same plasmid OTU! This may not be exactly the same plasmid, but evolutionarily speaking they’re as close as it gets! this suggests enhanced HGT potential within this plasmids.

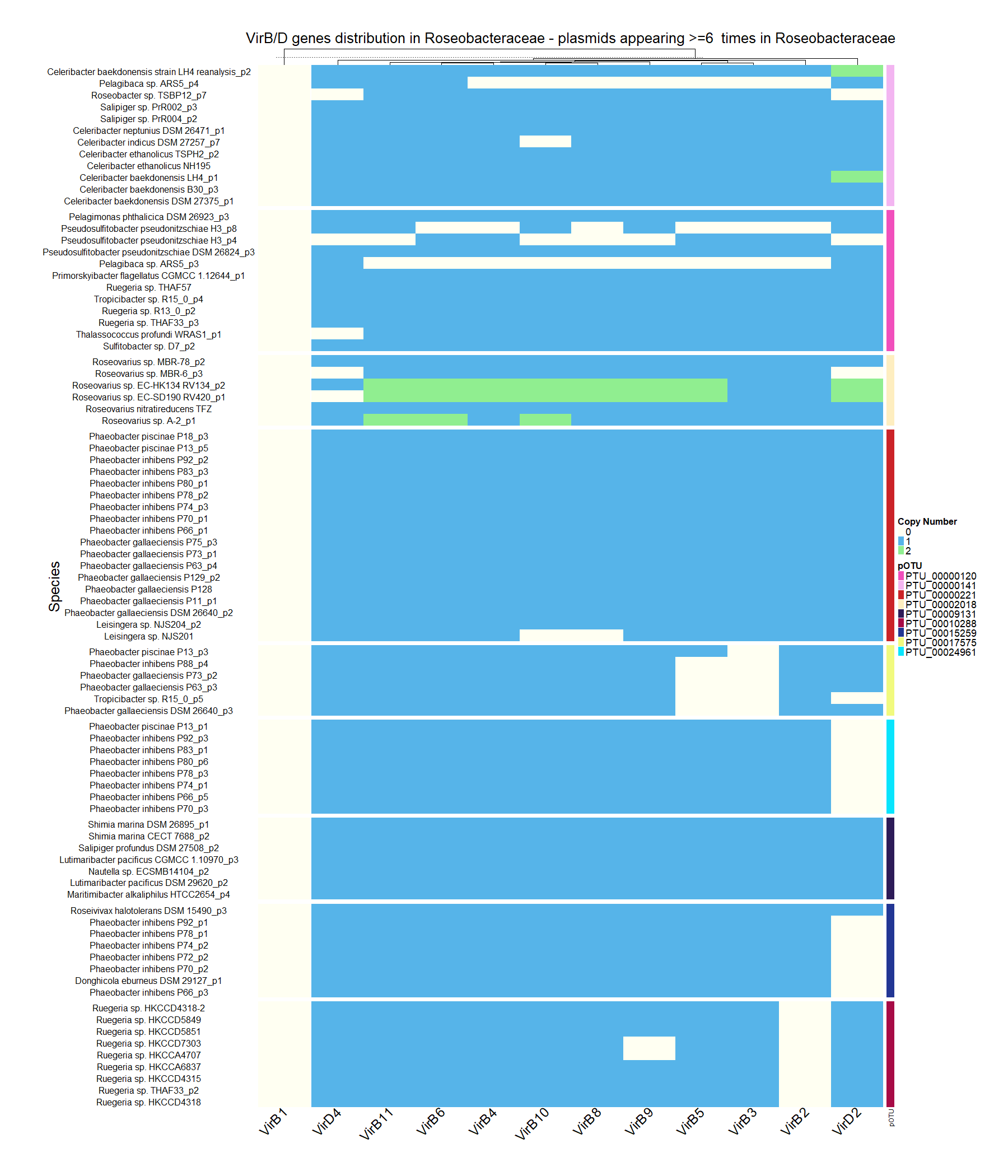

In the table below we see how distinct gene distributions look like in pOTUs that are common to more than 6 genomes in the Roseobacter group. Most operons within the same pOTU share similar function profiles. For example, PTU_00024961 and PTU_00009131 exhibit a conservative pattern, indicating a relatively recent transfer. In contrast, pOTUs like PTU_000002018, PTU_000000120, and PTU_000000141 show lower conservation and significant variance among plasmids carrying the same pOTU.

Sequences encoded on chromosomes are distinct from sequences encoded on plasmids

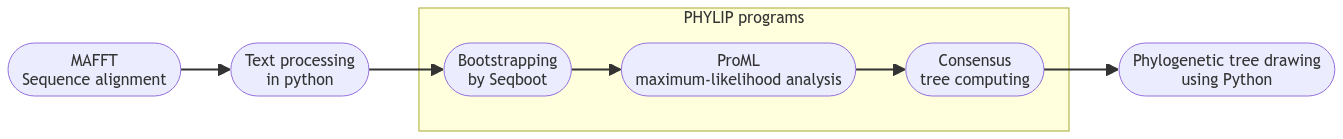

One of the more resource-intensive analyses I’ve done was focused on sequence comparison. Protein sequences of each studied Vir protein family found in Roseobacters were aligned and then processed in a phylogenetic pipeline for clustering and tree-drawing. The pipeline is briefly described in the flowchart below.

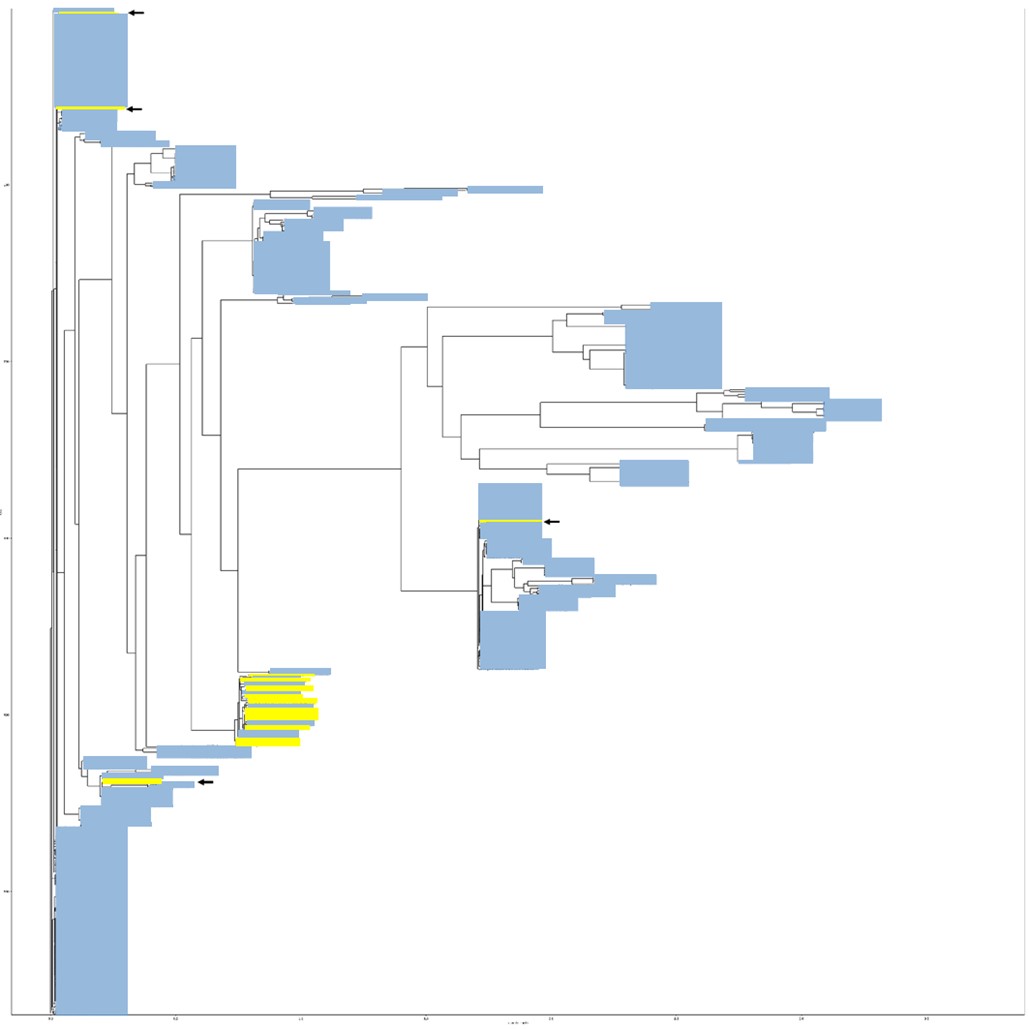

In one example, for T4SS gene virB8, out of 569 virB8 sequences that were analyzed, 28 are encoded on chromosomes and 541 on plasmids. It’s easily seen on the tree shown below, that most chromosomally encoded virB8 sequences cluster together (marked in yellow), with only 4 outlier sequences which cluster within PE-virB8 clusters (pointed at with black arrows). the clear distinction between the two groups suggests recent incorporation of these plasmid virB8 genes (and the whole operons) into the chromosomes of their hosts.

The consensus sequences of each alignment, plasmid and chromosomally encoded T4SS genes, were taken and aligned to the other. Sequence alignment between consensus sequences shows that the proteins are mostly conserved, yet some differences are visible. By definitions formerly suggested in the literature, most changes seem conservative or moderately conservative, suggesting such changes would preserve protein structure and properties⁷,⁸. However, eight of the variable positions present changes that are classified as moderately radical and may affect protein structure and properties.

Discussion & Conclusions

In conclusion, exploration into the T4SS presented several interesting observations, as well as challenges. The mis-annotation of certain genes, such as virB1 and virB7, highlighted the challenges in studying these systems, emphasizing the need for precise genetic data. Furthermore, our comparative analysis of chromosomal and plasmid encoded T4SS sequences shed light on distinctive patterns, further underscoring the uniqueness of these systems. And suggesting that plasmid encoded T4SS in Roseobacters is active in context of conjugation, while chromosomally encoded T4SS is not, although it requires further confirmation.

Although certain questions remain, particularly regarding the evolutionary scenarios and the precise roles of specific proteins, this study lays a foundation for future investigations in understanding the complex interplay between algae and bacterial conjugation within the Roseobacter group.
